Aluminum-Based PCB

Rigid pcb also includes high precision pcb,hard gold fingers pcb,high frequency pcb,small saplce bga pcb. The high precision pcb:4 layer pcb with min 3/3mil trace wideth/space and 5 mil space of hole to line. Hard gold fingers pcb: 6 layer gold finger pcb and the hard gold thickness is up to 1.5um by etching plating bar technology to make sure no plating bar remain on gold fingers. High frequency pcb:8 layer high frequency pcb with fr4 and high frequency material mixed lamination technology and well controlling warpage within 0.5% to meet IPC-6012 Class Ⅲ.

Classification:

Keywords:

Email:

Process Parameter

Item	Rigid PCB
Max Layer	64L
Inner Layer Min Trace/Space	3/3mil
Out Layer Min Trace/Space	3/3mil
Inner Layer Max Copper	6oz
Out Layer Max Copper	6oz
Min Mechanical Drilling	0.15mm
Min Laser Drilling	0.1mm
Aspect Ratio(Mechanical Drilling)	20:01
Aspect Ratio(Laser Drilling)	1:01
Press Fit Hole Ttolerance	±0.05mm
PTH Tolerance	±0.075mm
NPTH Tolerance	±0.05mm
Countersink Tolerance	±0.15mm
Board Thickness	0.4-8mm
Board Thickness Tolerance(＜1.0mm)	±0.1mm
Board Thickness Tolerance(≥1.0mm)	±10%
Impedance Tolerance	Single-Ended：±5Ω(≤50Ω)，±7%(＞50Ω)
Impedance Tolerance	Differential：±5Ω(≤50Ω)，±7%(＞50Ω)
Min Board Size	10*10mm
Max Board Size	22.5*30inch
Contour Tolerance	±0.1mm
Min BGA	7mil
Min SMT	7*10mil
Surface Treatment	ENIG,Gold Finger,Immersion Silver,Immersion Tin,HASL(LF),OSP,ENEPIG,Flash Gold;Hard gold plating
Solder Mask	Green,Black,Blue,Red,Matt Green
Min Solder Mask Clearance	1.5mil
Min Solder Mask Dam	3mil
Legend	White,Black,Red,Yellow
Min Legend Width/Height	4/23mil
Strain Fillet Width	/
Bow & Twist	0.30%

Areas of Application

Consumer Electronics

Aerospace

Telecommunications

Military Defense

Automotive Industry

Industrial Control

Why Choose Us ?

One-stop PCB PCBA service

Advanced equipment and technology

24 hours high quality online service

Fast delivery speed

Accreditation

Packaging & Transportation

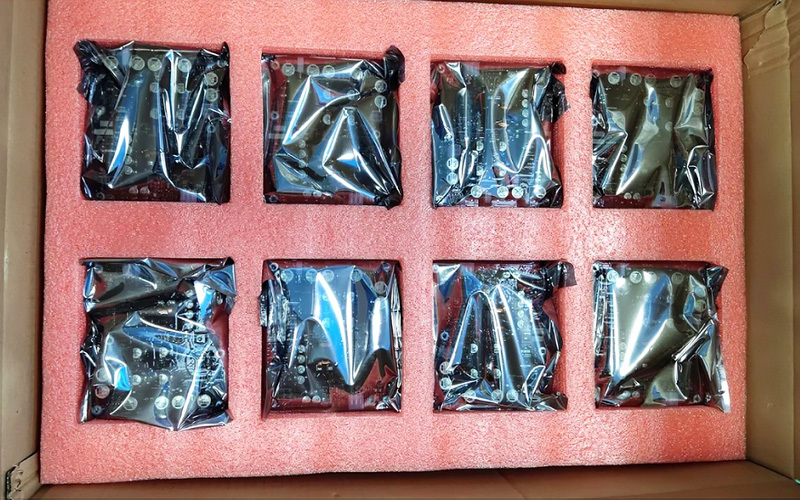

Static electricity bag+EV pearl cotton

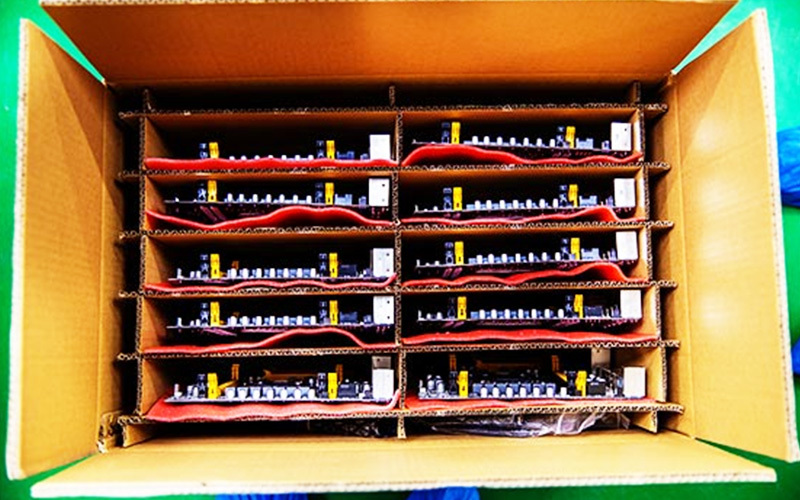

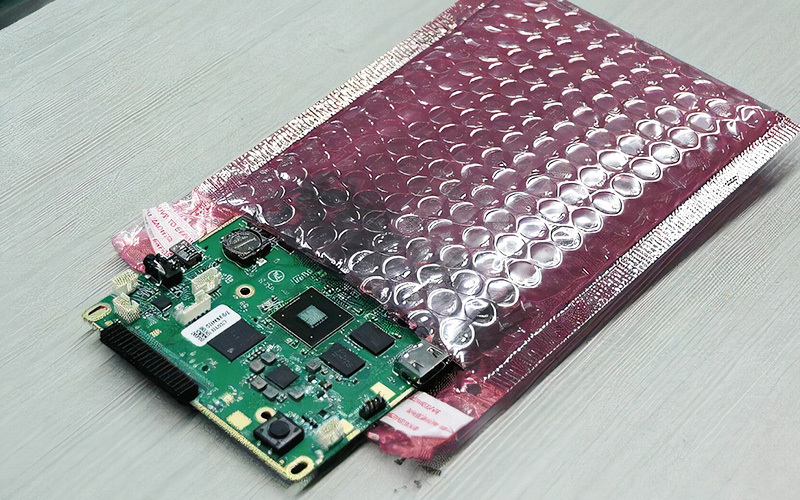

Anti-static bubble bags + carton slot

Carton slot + bubble foam

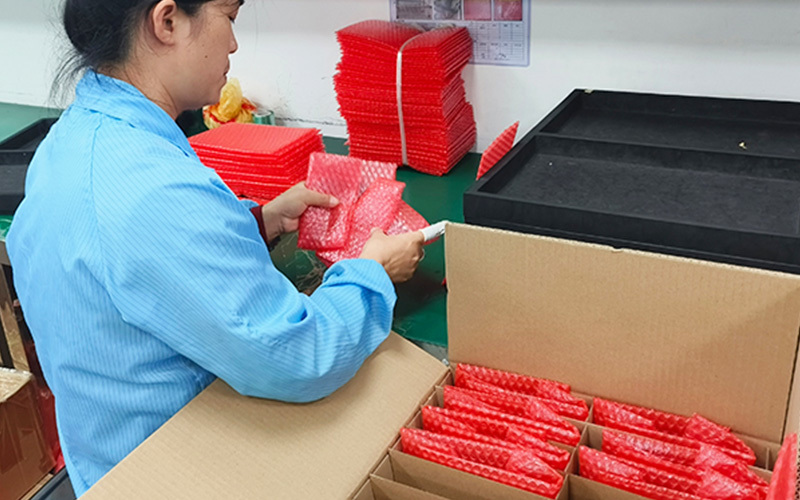

Anti-static kraft bubble bags

Shipping Way

For small packages, we advise to choose by express (such as DHL, UPS, FedEx, and EMS by door to door service!)is the quickest way.
For heavy packages, the best solution is by seafreight.
